Fix SharePoint 2013 UPS Stuck on Starting

byDan Sanders inSharePoint posted4 July, 2018

UPS Stuck on Starting

After installing the May 2018 CU on a SharePoint 2013 Farm the User Profile Synchronization Service (UPS) was stuck on starting.
This farm had not had any CUs applied for a year.
Starting the Sync service should upgrade the related databases and service as part of the provisioning process.
In my case the Sync service would get stuck on starting even after a reboot of the App server.

What I tried

Unprovisioning the Sync service
Reset the Timer Service cache on all servers
Run Products and configuration wizard on all servers
Restarted Servers
Followed Spence Harbars guide on Stuck on Starting issues
Reset the sync machine instance as detailed by Spence
Deleted and re-created the User Profile Application Service (UPAS) connecting to original DB’s and with new ones numerous times
Removed all ForefrontIdentityManager certificates as mentioned here (A post I logged years ago)
Confirmed correct permissions on the UPS
IIS App Pools are running as expected
Farm account is in the Administrators group and I have logged in as this account to try and get it started
Farm Account has log on locally right

When trying to provision the Sync service the ULS logs a whole lot of Upgrade events.
No ILM Configuration Steps are logged to the ULS like what’s expected.

What worked

Below includes a couple of things that are rarely blogged about.

Unprovision the synchronization service:

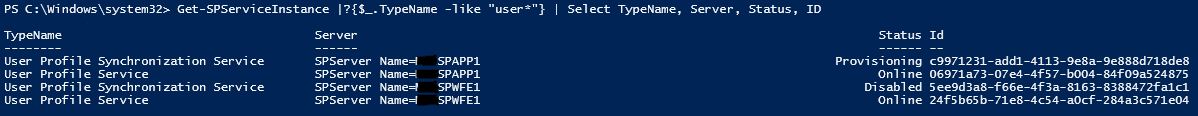

Get-SPServiceInstance |?{$_.TypeName -like "user*"} | Select TypeName, Server, Status, ID

PowerShell - Get-SPServiceInstance - UPS Stuck on Starting

$srvc = Get-SPServiceInstance *ID of provisioning service*
$srvc.Unprovision()

Delete Synchronization Provisioning Timer Jobs

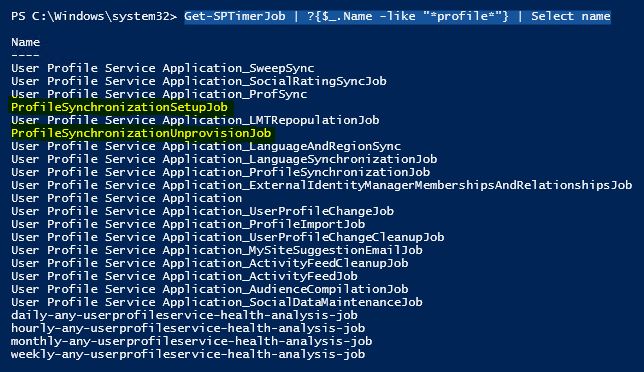

Get-SPTimerJob | ?{$_.Name -like "*profile*"} | Select name

PowerShell - Get-SPTimerJob

If you see the two highlighted jobs above are created during the provisioning or unprovisioning process.
Delete them

$tj = Get-SPTimerJob ProfileSynchronizationSetupJob
$tj.Delete()
$tj = Get-SPTimerJob ProfileSynchronizationUnprovisionJob
$tj.Delete()

Set Timer Service Instances Online

Ensure that the Timer Service Instances are all online.
This is different to the timer service services.

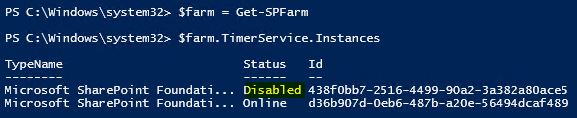

$farm = Get-SPFarm
$farm.TimerService.Instances

PowerShell - TimerService.Instances

If there are instances that are not online update them as follows:

$disabledTimers = $farm.TimerService.Instances | where {$_.Status -ne "Online"}
foreach ($timer in $disabledTimers)
{
$timer.Status = [Microsoft.SharePoint.Administration.SPObjectStatus]::Online
$timer.Update()
}

The Order that Worked

With the above steps completed provisioning the Sync service failed for me again so I Worked through the below order to get it working.

– Deleted the User Profile Service Application (UPSA) again
– Restarted Timer Job Services
– Recreated UPSA with a new sync DB
– Started the User Profile Service on the app server
– Ensured correct permissions were set on the UPS
– Deleted stuck or provisioning timer jobs
– Cleared timer cache
– Re-checked timer instances were online
– Rechecked all settings and services
– Started sync service

The sync service started!
I re-setup the AD Sync connection and completed a full sync.

If you did recreate the UPSA make sure that you disable the My Site Cleanup Timer job, failure to do so will result in your existing My site Site Collections being deleted.
This is due to the new Sync Connection. After a full sync it would mark all previous profiles to be deleted, and eventually the timer Job will delete the Site Collections.

Once you have performed a number of syncs this should be OK to enable again.
